VRL22F EV
VRL22F EV Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO) Type F EV
Poles: 2 poles, 4 poles
Model No. : VRL22F EV Series
-VRL22F EV--2P up to 63A
-VRL22-40F EV--4P up to 40A
-VRL22-63F EV--4P up to 63A
Type (wave form of the earth leakage sensed): AC, A, Smooth DC 6mA
Rated current In: 6A, 8A, 10A, 13A, 15A, 16A, 20A, 25A, 30A, 32A, 35A, 40A, 45A, 50A, 63A
Rated voltage Ue: 2P: 240V; 4P: 415V
Rated frequency: 50/60Hz
Electrical life: ≥5000
Mechanical life: ≥5000
Standard: IEC/EN 61009-1 & EN62423
Product Profile
Function
VRL22F EV Residual Current Circuit Breaker with overcurrent protection TYPE F EV (RCBO TYPE F EV) is the Type EV RCBO which has been developed specifically for EV charging systems and can detect AC and DC residual currents, overcurrent (overload) and short circuit protection in accordance with the requirements of EN61009-1 and EN62423(function for detecting smooth DC residual current and a tripping threshold of 6mA).
Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
Smooth DC 6mA
smooth DC residual currents (switch-off at max 6 mA)
Approvals and certificates: UKCA, CE
Tripping sensitivity
30mA - 50Hz sinusoidal AC ; Pulsating DC
Smooth DC ≥ 6 mA (RDC-PD)
Tripping time
short time delayed (G )
Technical Data
Basic parameters
Dimensions
Product Profile
Function
VRL22F EV Residual Current Circuit Breaker with overcurrent protection TYPE F EV (RCBO TYPE F EV) is the Type EV RCBO which has been developed specifically for EV charging systems and can detect AC and DC residual currents, overcurrent (overload) and short circuit protection in accordance with the requirements of EN61009-1 and EN62423(function for detecting smooth DC residual current and a tripping threshold of 6mA).
Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
Smooth DC 6mA
smooth DC residual currents (switch-off at max 6 mA)
Approvals and certificates: UKCA, CE
Tripping sensitivity
30mA - 50Hz sinusoidal AC ; Pulsating DC
Smooth DC ≥ 6 mA (RDC-PD)
Tripping time
short time delayed (G )

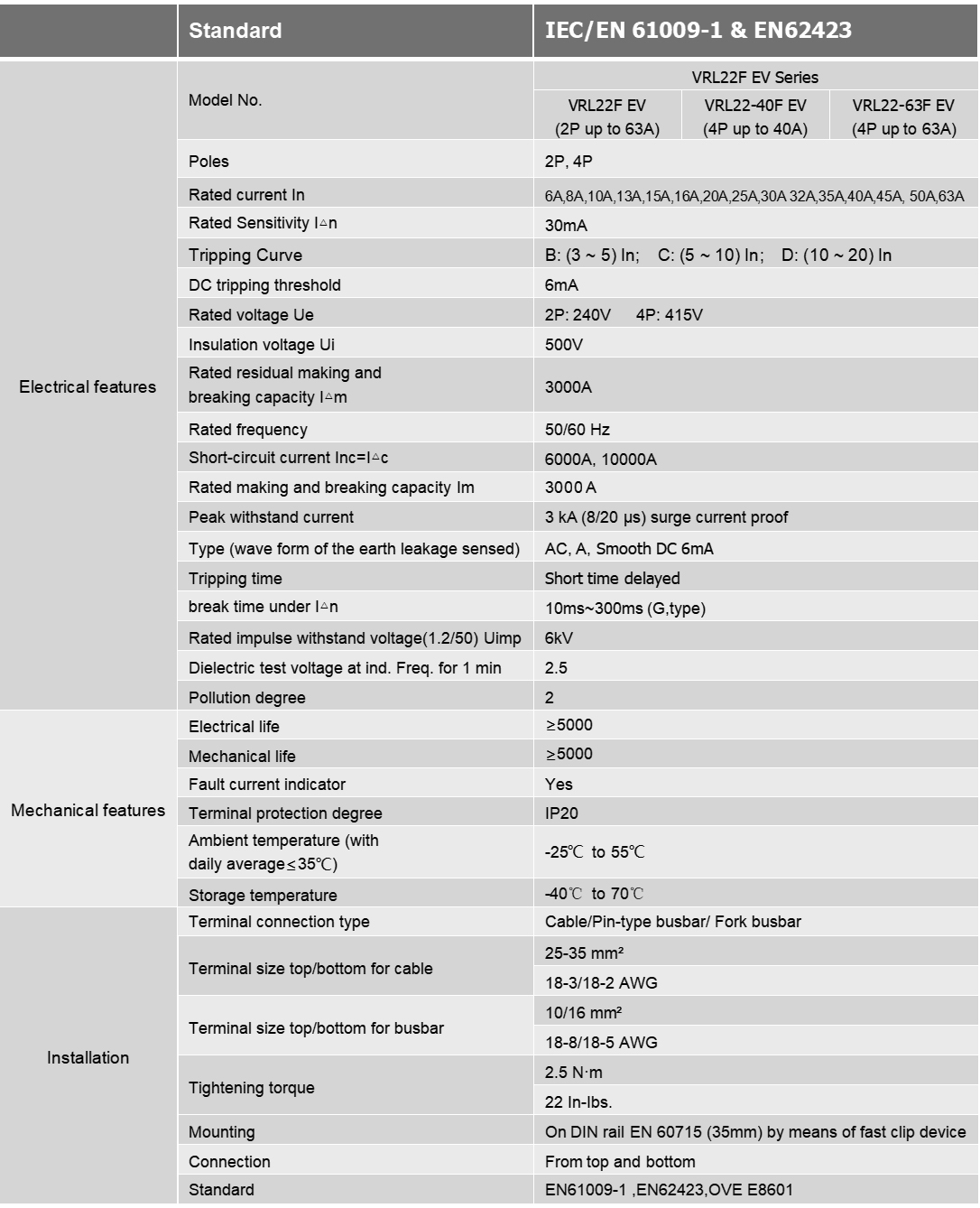

Technical Data
Dimensions
-
-
