VRL22A EV Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO) Type A EV
Poles: 2 poles; 4 poles
Model No. : VRL22A EV Series
-VRL22A EV--2P up to 63A
-VRL22-40A EV--4P up to 40A
-VRL22-63A EV--4P up to 63A
Type (wave form of the earth leakage sensed): AC, A, Smooth DC 6mA
Rated current In: 6A, 8A, 10A, 13A, 15A, 16A, 25A, 30A, 32A, 35A, 40A, 45A, 50A, 63A
Rated voltage Ue: 2P: 240V; 4P: 415V
Rated frequency: 50/60Hz
Electrical life: ≥5000
Mechanical life: ≥5000
Standard: IEC/EN 61009-1, IEC 62955
Product Profile
Function
VRL22A EV Residual Current Circuit Breaker with overcurrent protection TYPE A EV (RCBO TYPE A EV) is the Type EV RCBO which has been developed specifically for EV charging systems and can detect AC and DC residual currents, over current (overload) and short circuit protection in accordance with the requirements of EN61009-1 and IEC62955(RDC-PD: Residual Direct Current Protective Device )
VRL22A EV Type A EV RDC-PD/RCBO is designed specifically for use in Mode 3 charging applications.
Selection
Detectable wave form AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
Smooth DC 6mA
smooth DC residual currents (switch-off at max 6 mA)
Approvals and certificates: UKCA,CE
Tripping sensitivity
30mA - 50Hz sinusoidal AC ; Pulsating DC
Smooth DC ≥ 6 mA (RDC-PD)
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Technical Data
Basic parameters
Dimensions
Product Profile
Function
VRL22A EV Residual Current Circuit Breaker with overcurrent protection TYPE A EV (RCBO TYPE A EV) is the Type EV RCBO which has been developed specifically for EV charging systems and can detect AC and DC residual currents, over current (overload) and short circuit protection in accordance with the requirements of EN61009-1 and IEC62955(RDC-PD: Residual Direct Current Protective Device )
VRL22A EV Type A EV RDC-PD/RCBO is designed specifically for use in Mode 3 charging applications.
Selection
Detectable wave form AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
Smooth DC 6mA
smooth DC residual currents (switch-off at max 6 mA)
Approvals and certificates: UKCA,CE
Tripping sensitivity
30mA - 50Hz sinusoidal AC ; Pulsating DC
Smooth DC ≥ 6 mA (RDC-PD)
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
Technical Data

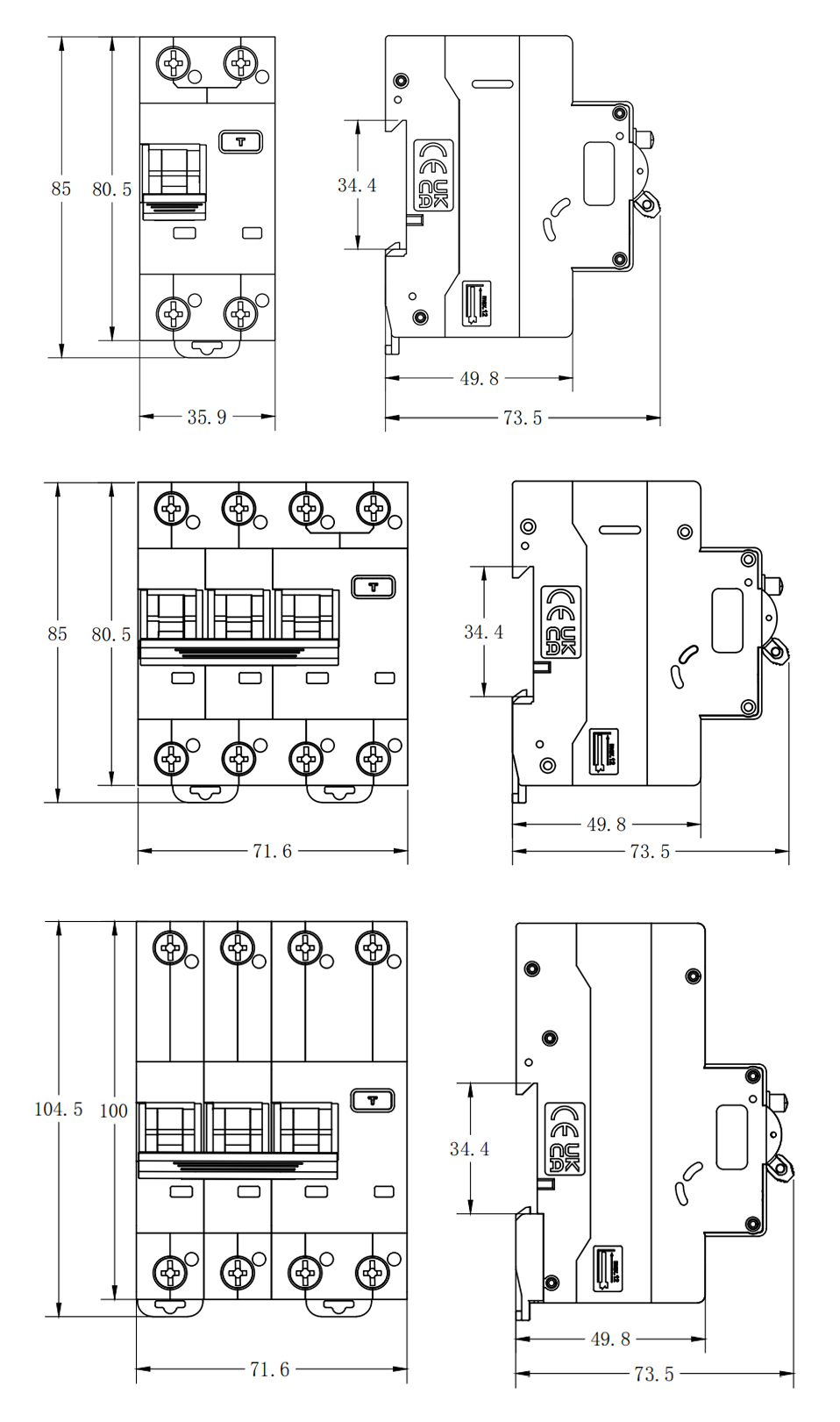

Dimensions
-
-
