VRL22

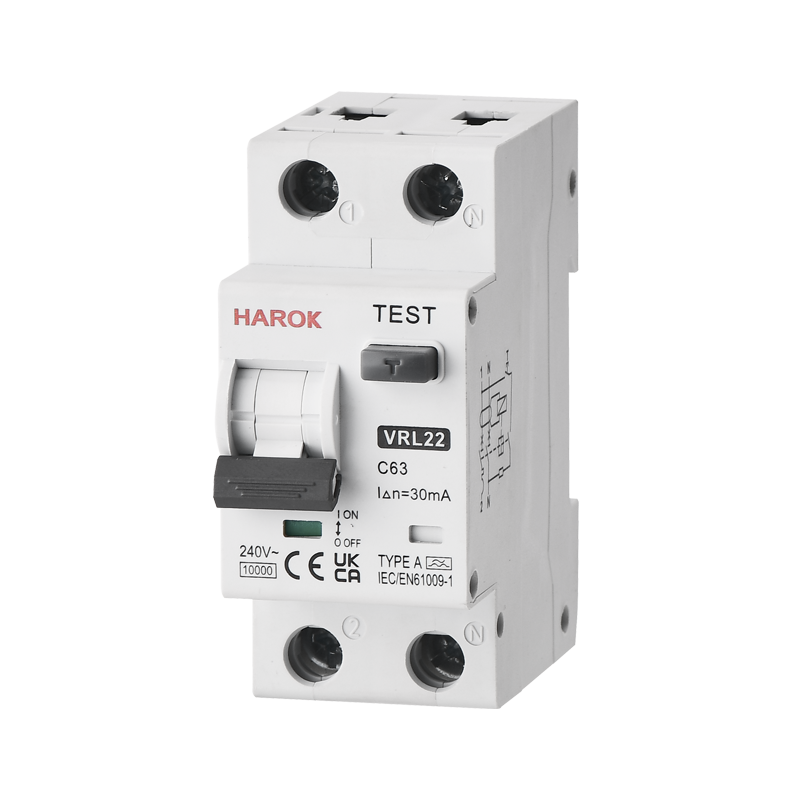

VRL22 Residual Current Operated Circuit Breaker with Overcurrent Protection (RCBO)
Model No. ：VRL22 series (Electromagnetic/Voltage independent)
VRL22(2P up to 63A)
VRL22-40(4P:up to 40A)
VRL22-63(4P up to 63A)
Rated current In：2A,4A,5A,6A,8A,10A,13A,15A,16A,20A, 25A,30A, 32A,35A, 40A, 45A,50A, 60A,63A
Tripping Curve：B: (3 ~ 5) In, C: (5 ~ 10) In
Poles：1P + N, 3P+N
Type (wave form of the earth leakage sensed)：Type AC, Type A, Type ASi
Product Profile
General
VRL22 residual current operated circuit breakers with overcurrent protection (RCBO) are suitable for lines with AC 50/60Hz, rated voltage 240V/415V, rated current up to 63A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Certified : SEMKO , UKCA, CE,SAA
Technical Data
Basic parameters
The residual current breaking times
The over-current protection characteristics
The tripping characteristic curves are as shown below
Wiring diagram
TYPE A/AC TYPE A/AC
1P+N 3P+N
Dimensions
Product Profile
General
VRL22 residual current operated circuit breakers with overcurrent protection (RCBO) are suitable for lines with AC 50/60Hz, rated voltage 240V/415V, rated current up to 63A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Certified : SEMKO , UKCA, CE,SAA
Technical Data
Dimensions
-
-
