VKL11 ( TYPE F EV)

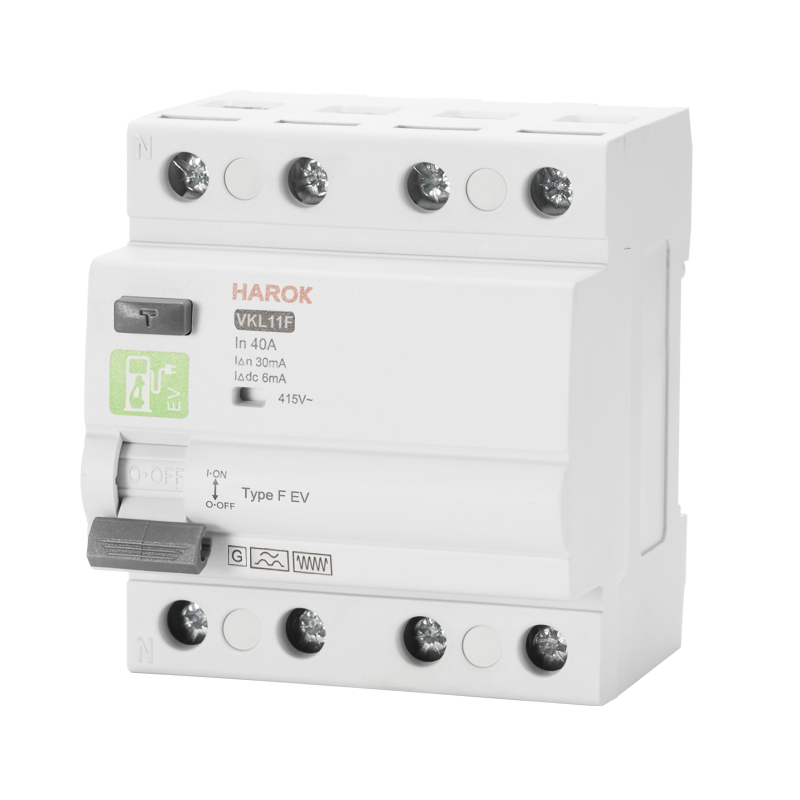

VKL11F Residual Current Operated Circuit Breaker Type F EV
Model No. ：VKL11F F EV
Poles：2P, 4P
Rated current In：16A, 25A, 32A, 40A, 63A, 80A, 100A
Rated Sensitivity I△n：30mA
DC tripping threshold：6mA
Rated voltage Ue：2P: 240V 4P: 415V
Insulation voltage Ui：500V
Rated frequency：50/60 Hz
Rated residual making and breaking capacity I△m：500A (In=16A, 25A, 32A, 40A) 630A(In=63A), 800A(In=80A), 1000A(In=100A)
Short-circuit current Inc=I△c：6000A, 10000A,1500 A
Product Profile
Function
Residual Current Circuit Breaker VKL11F TYPE F EV (RCCB TYPE F EV) is the Type EV RCCB which has been developed specifically for EV charging systems and can detect AC and DC residual currents in accordance with the requirements of EN61008-1 and EN62423(function for detecting smooth DC residual current and a tripping threshold of 6mA )
The VKL11F RCCB TYPE F EV also detects residual currents with mixed frequencies which is different from 50Hz. Electronic wiring and power electronics are required in electric vehicles for charging purposes. In the event of a fault, these can give rise to smooth DC residual currents and residual currents with mixed frequencies.The VKL11F RCCB TYPE F EV is also short-time delayed and has increased surge current strength. This significantly reduces the risk of faulty tripping.
Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
Smooth DC 6mA
smooth DC residual currents (switch-off at max 6 mA)
Approvals and certificates :UKCA,CE
Tripping sensitivity
30mA - 50Hz sinusoidal AC ; Pulsating DC
Smooth DC ≥ 6 mA (RDC-PD)
Tripping time
short time delayed (G )

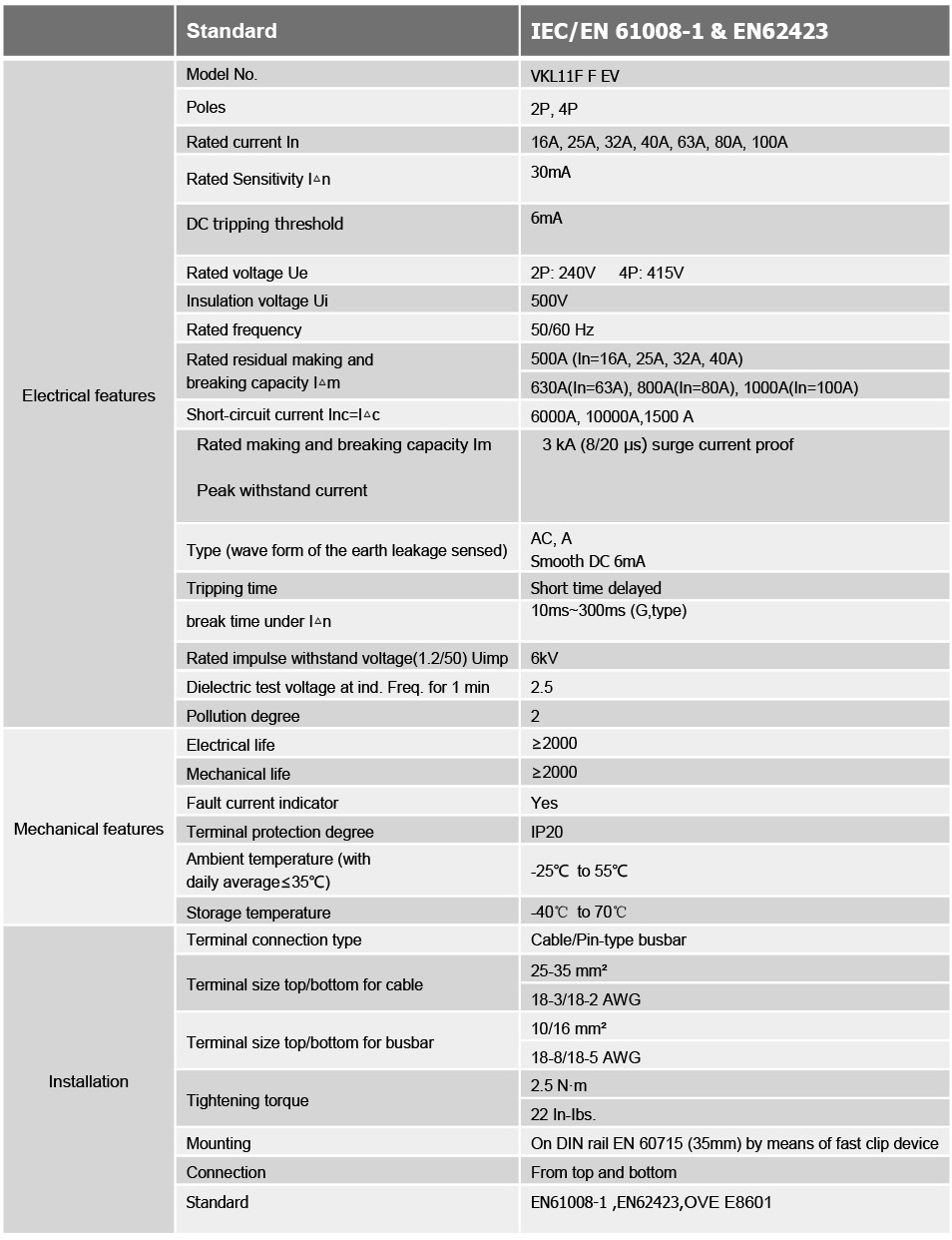

Technical Data
Dimensions
