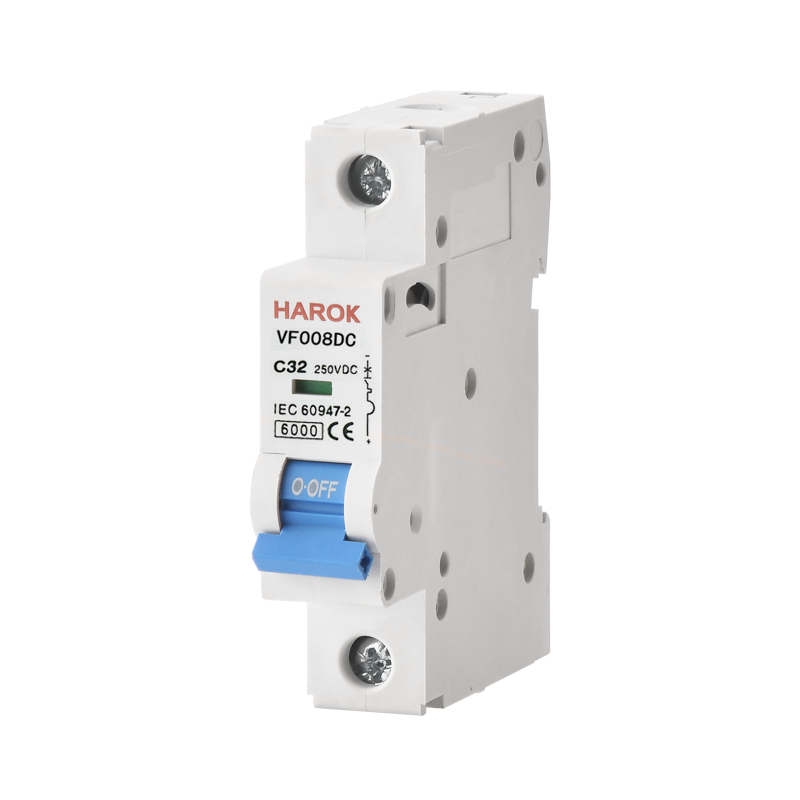

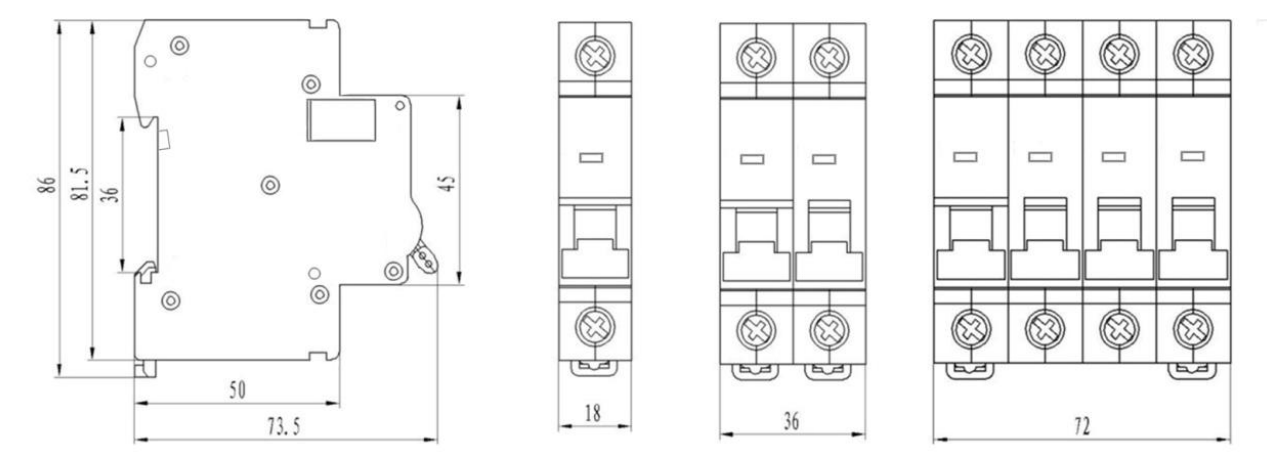

VF008DC

General

Standard: IEC/EN 60947-2, RoHS;

Rated voltage up to 1000V, Rated current up to 63A;

Protection of circuits against overload currents;

Protection of circuits against short- circuit currents;

VF008 DC circuit-breakers are used in communication systems and PV DC systems.

Features

Excellent breaking capacity

Double connection function of lead wire and bus bar

Stored energy operation, fast closing, long service life

Convenient installation, disassembly

Contact on-off indication, higher security

Green environmental protection and energy saving

Operating conditions

Ambient temperature: -35℃ - + 70℃(Refer to 4.3)

The atmosphere condition: ≤95%

Pollution degree: ll

Altitude: ≤2000m(if exceed 2000m, Refer to 4.4)

Technical data

Classification

Rate Current In: 1A,2A,3A,4A,6A,10A,13A,16A,20A,25A,32A.40A,50A,63A

Number of poles: 1P, 2P, 4P

Tripping curves: C Type, (7-10)In

Parameters

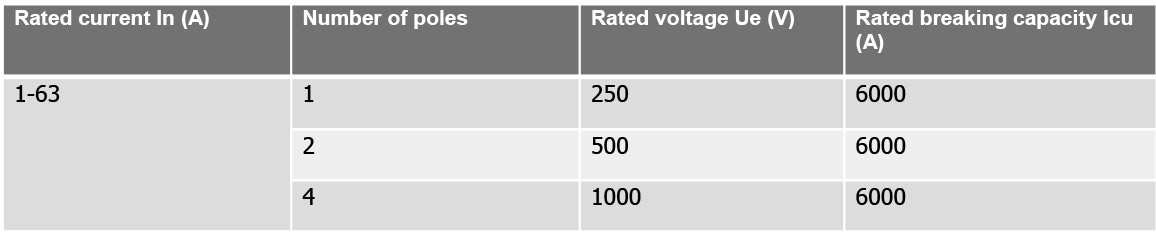

Rated breaking capacity Icu

Electrical and mechanical life

a. Electrical life: ＞1500

b. Mechanical life: ＞20,000

Rated impulse withstand voltage Uimp: 4KV

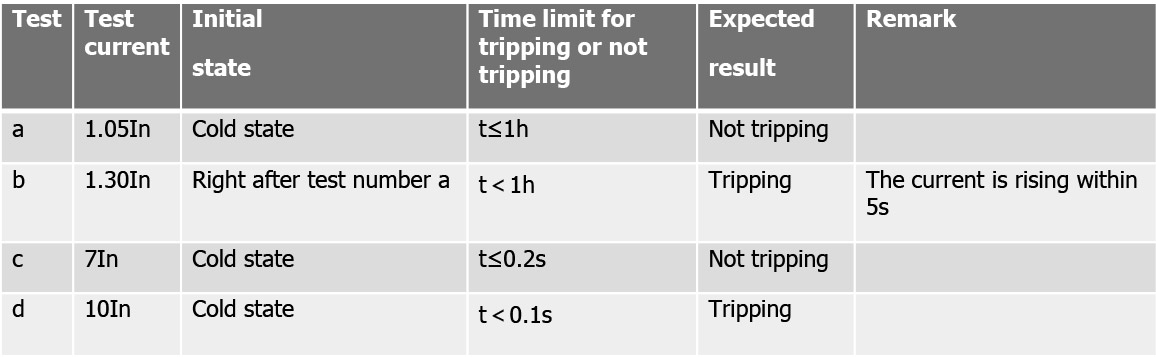

(28-32)℃ ambient temperature over-current protection features.

Note: The terminology”Cold state”means that the test is performed at the base calibration temperature with no load prior to the test.

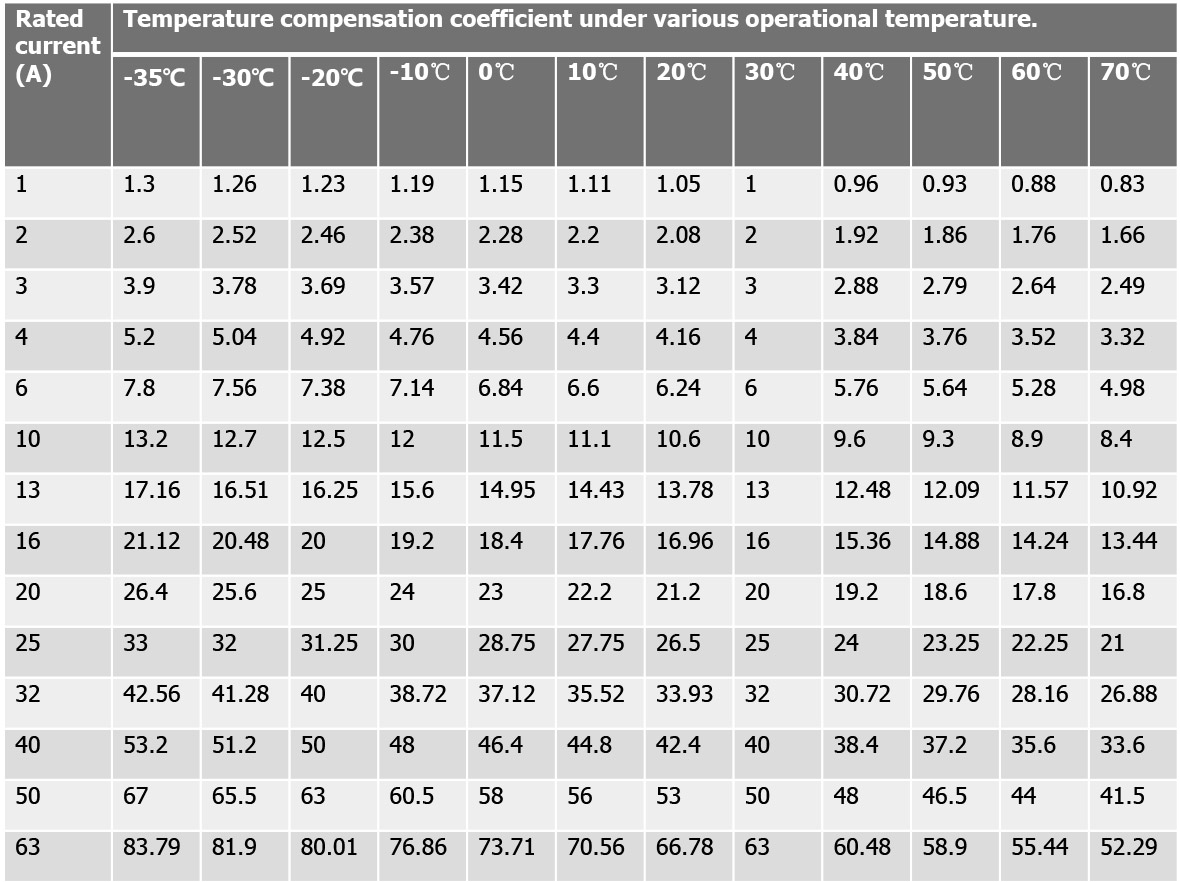

Temperature derating

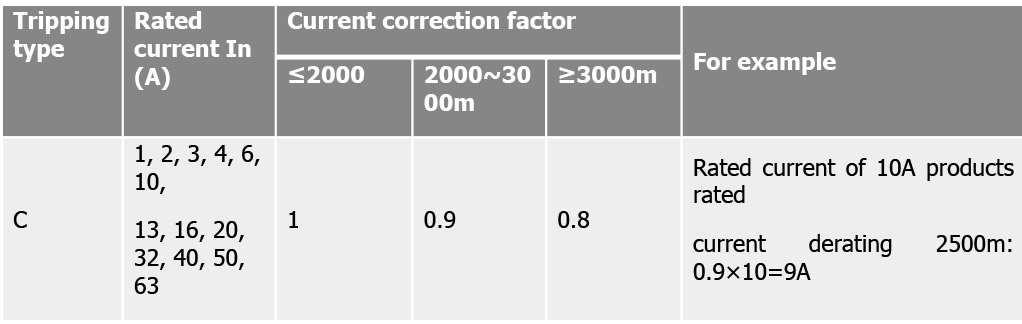

Altitude derating

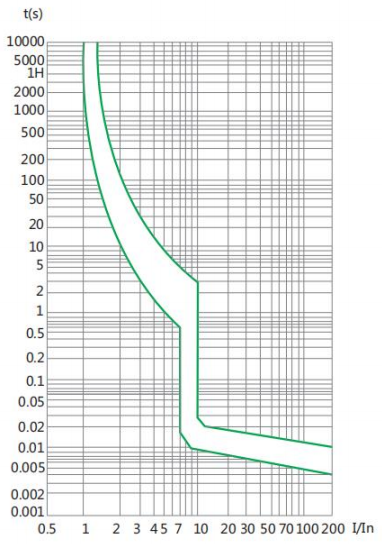

Curves shown in Figure 1

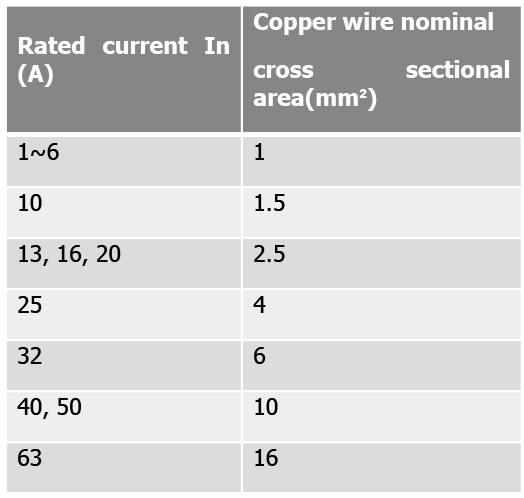

Wiring: Apply to 25 mm wire connection terminals

Tightening torque 2.5N·m

DC application wiring diagram shown in Figure 2

Wiring diagram description:

1. 〇+Positive 〇-Negative

2. L+ Load positive L- Load negative

3. Prohibit power reversed

4. Rated voltage: 1P: 250V, 2P: 500V, 4P:
