VF003
VF003 Miniature Circuit Breaker
Model No. ：VF003
Poles：1P+N
Rated current In：2A, 6A, 10A, 16A, 20A, 25A, 32A
Rated voltage Ue：120V, 230/400V ~ 240/415V
Insulation voltage Ui：500V
Rated frequency：50/60 Hz
Rated breaking capacity：3000A,4500A, 6000A
Energy limiting class：3
Rated impulse withstand voltage(1.2/50) Uimp：4000V
Product Profile
Function
protection of circuits against short-circuit currents, protection of circuits against overload currents, switch, isolation, VF003 circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.VF003 mini circuit breaker is NF certified.
Selection
Technical data of the network at the point considered: short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device, Network normal voltage.
Tripping curves:
B curve (3-5In)-protection for people and big length cables in TN and IT systems.
C curves (5-10In)-protection for resistive and inductive loads with low inrush current.
D curves (10-14In)-protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers,breakdown lamps).
Approvals and certificates :NF,UKCA,CE

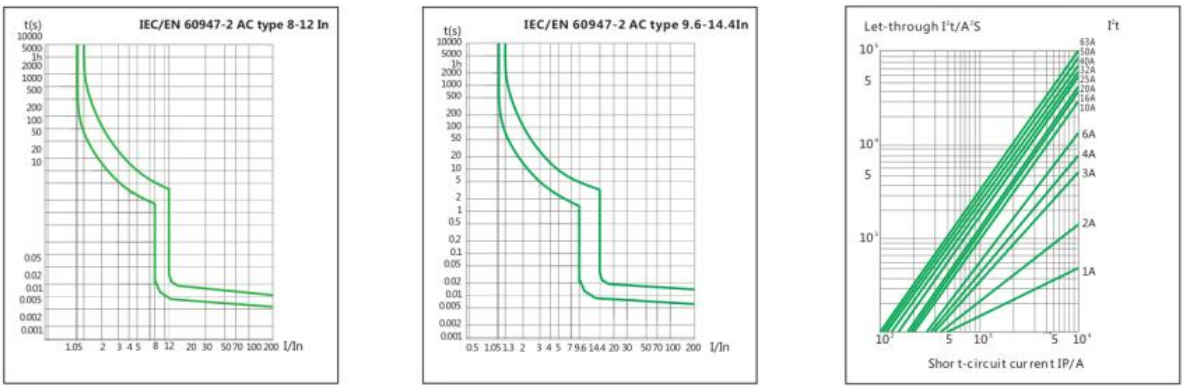

Curves

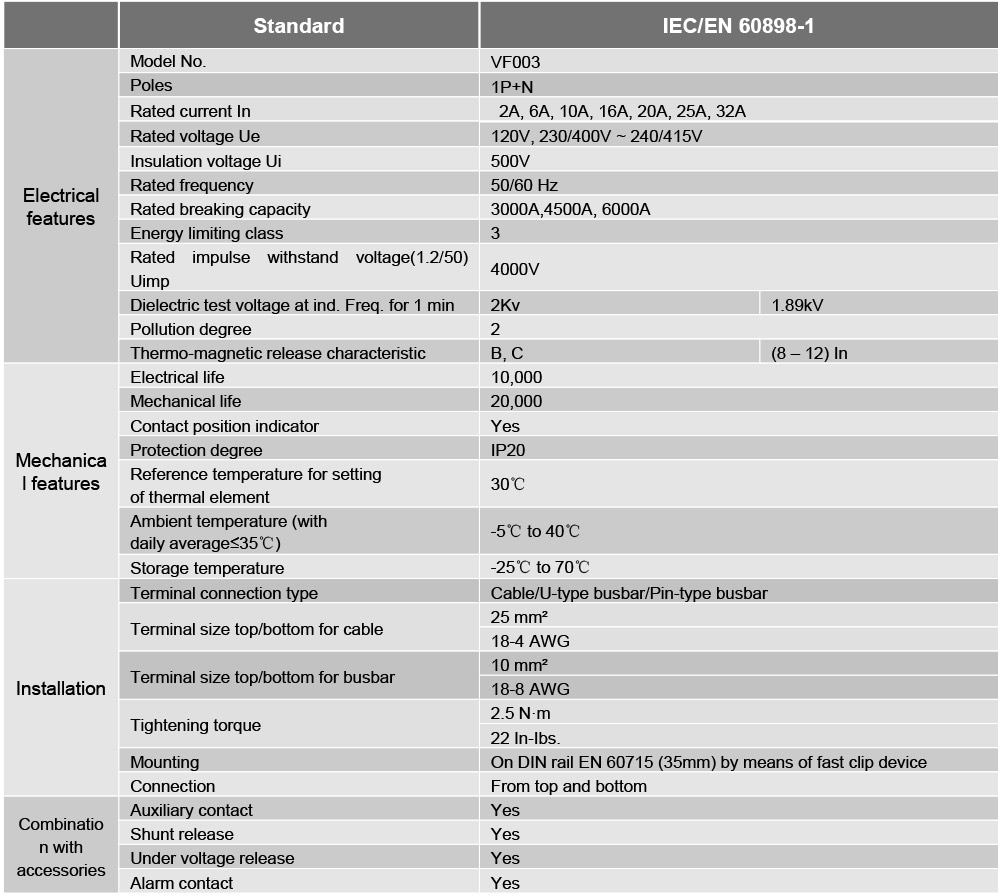

Technical Data
Dimensions
