VRL01

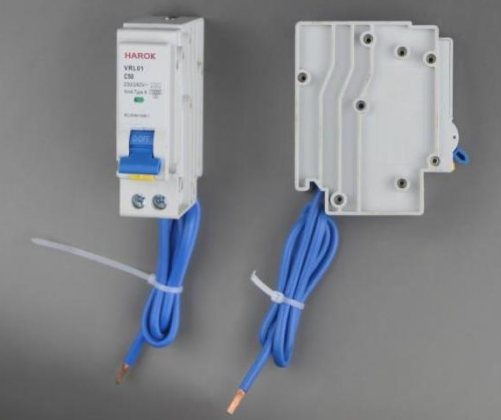

VRL01 Ground Fault Circuit Interrupter (MCB sized 1 module with switched neutral)
Model No. ：VRL01
Rated current In：6A, 10A, 16A, 20A, 25A, 32A, 40A, ,45, 50A
Tripping Curve：B: (3 ~ 5) In, C: (5 ~ 10) In
Poles：1P + N
Type (wave form of the earth leakage sensed)：Type AC, Type A
Product Profile
General
VRL01 Ground Fault Circuit Interrupters are suitable for lines with AC 50/60Hz, rated voltage 240V, rated current up to 50A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the Ground Fault Circuit Interrupter can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The Ground Fault Circuit Interrupter can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Certified : SEMKO , UKCA, CE
Technical parameters

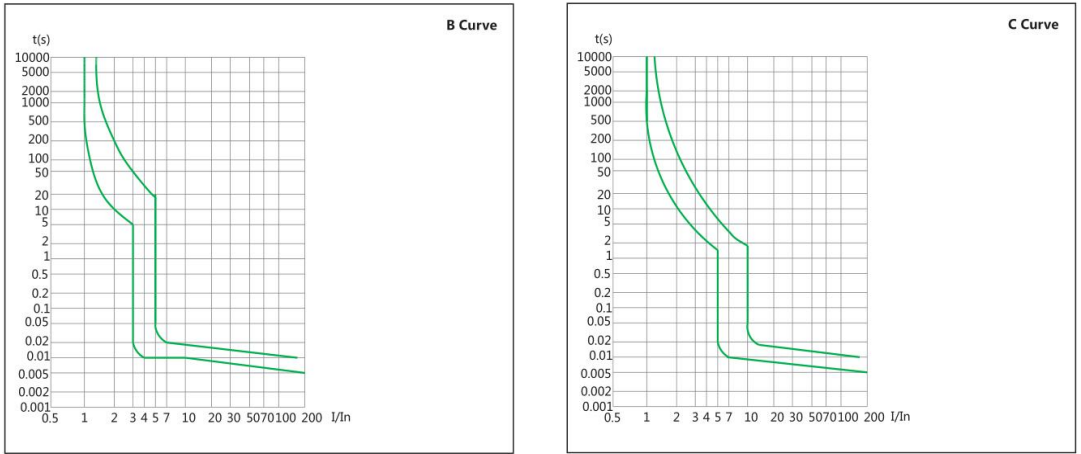

The tripping characteristic curves are as shown below.

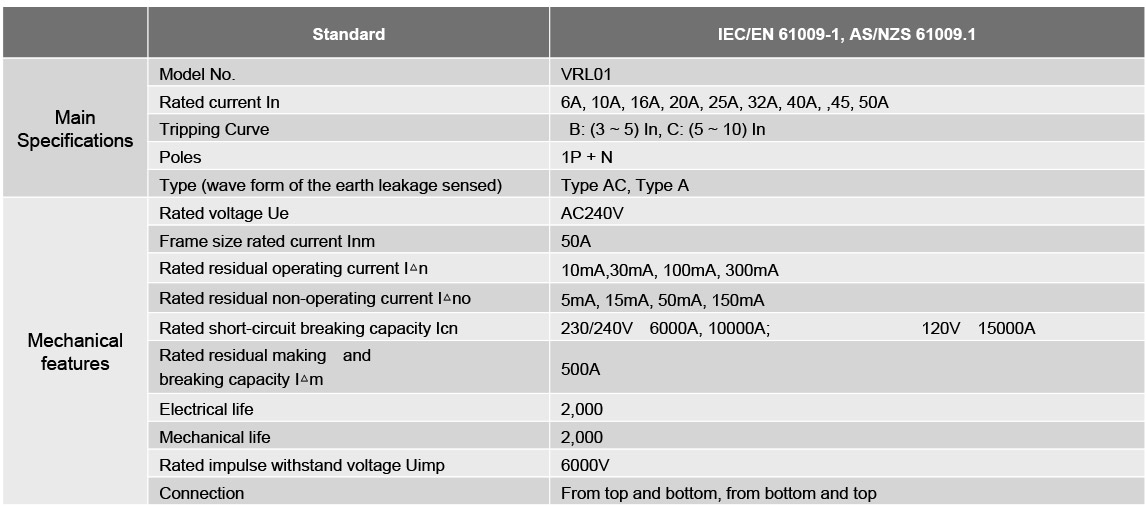

Technical Data
Basic parameters
The residual current breaking times
The over-current protection characteristics
Dimensions
Product Profile
General
VRL01 Ground Fault Circuit Interrupters are suitable for lines with AC 50/60Hz, rated voltage 240V, rated current up to 50A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the Ground Fault Circuit Interrupter can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The Ground Fault Circuit Interrupter can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Certified : SEMKO , UKCA, CE
Technical parameters
The tripping characteristic curves are as shown below.
Technical Data
Dimensions
-
-
