VKL003
VKL003 Residual Current Operated Circuit Breaker With Overcurrent Protection
Model No.：VKL003
Rated current In：5A, 6A, 10A, 13A, 15A, 16A, 20A, 25A, 30A, 32A, 35A, 40A
Tripping Curve：B: (3 ~ 5) In, C: (5 ~ 10) In
Poles：1P + N
Type (wave form of the earth leakage sensed)：Type AC, Type A
Product Profile
General
VKL003 residual current operated circuit breakers are suitable for lines with AC 50/60Hz, rated voltage 240V, 120V, rated current up to 40A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Certified : SEMKO , UKCA, CE,SAA
Technical parameters
The tripping characteristic curves are as shown below.
Technical Data
Basic parameters
The residual current breaking times
The over-current protection characteristics

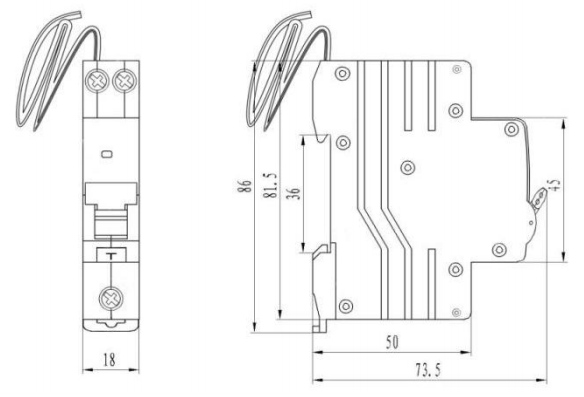

Dimensions
Product Profile
General
VKL003 residual current operated circuit breakers are suitable for lines with AC 50/60Hz, rated voltage 240V, 120V, rated current up to 40A and for purposes of residual current protection, overload and short circuit protection. When any personal electric shock occurs or the circuit leakage current exceeds the predetermined value, the residual current operated circuit breaker can automatically cut off the power supply in a very short period of time, so that the safety of persons and electrical equipment can be operated. The residual current operated circuit breaker can be used for infrequent conversion of lines under normal conditions, and applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Certified : SEMKO , UKCA, CE,SAA
Technical parameters
The tripping characteristic curves are as shown below.
Technical Data
Dimensions
-
-
