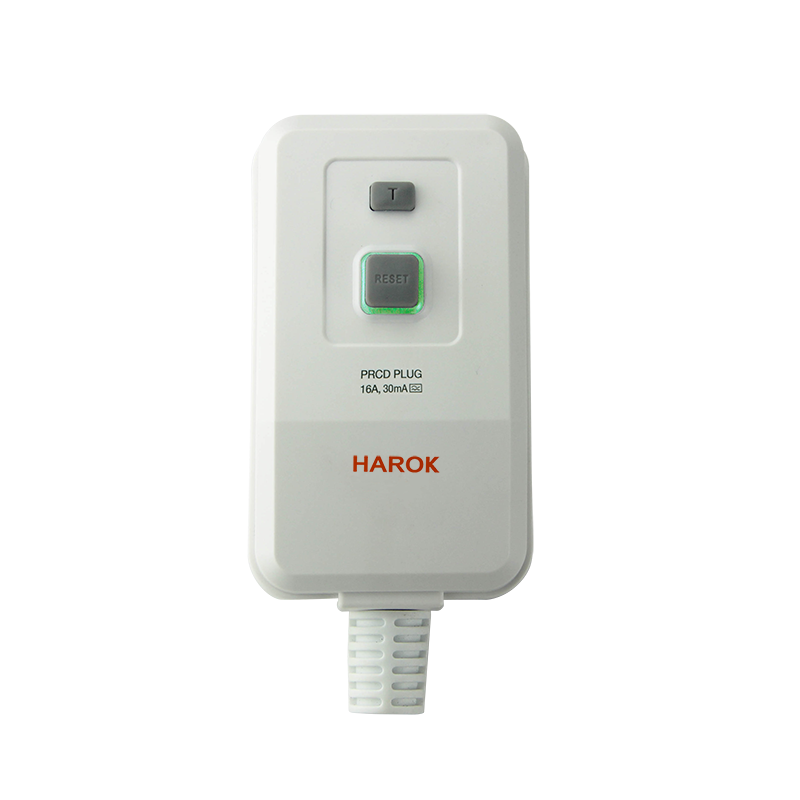

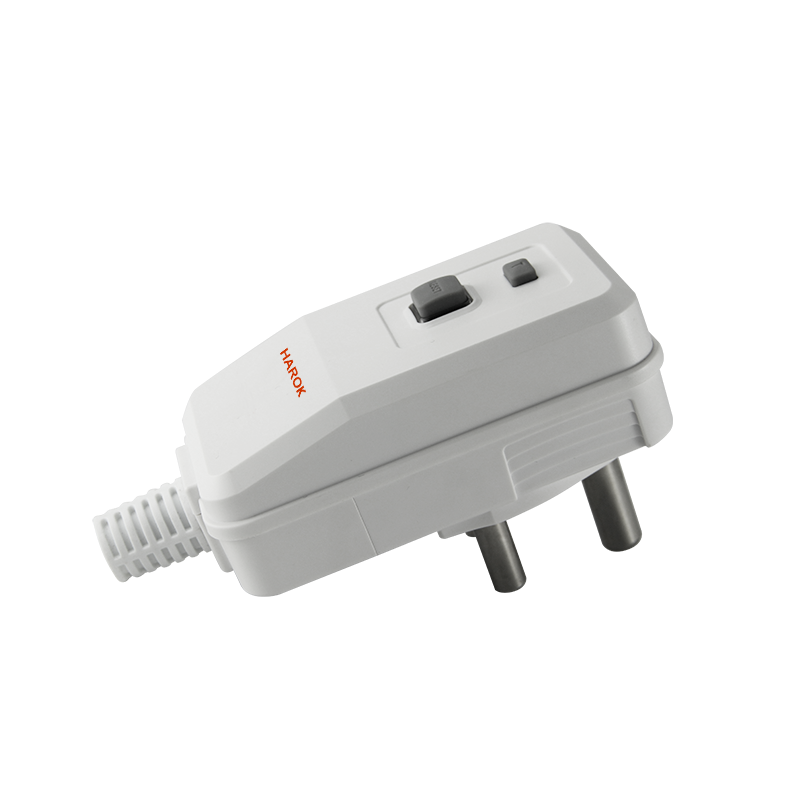

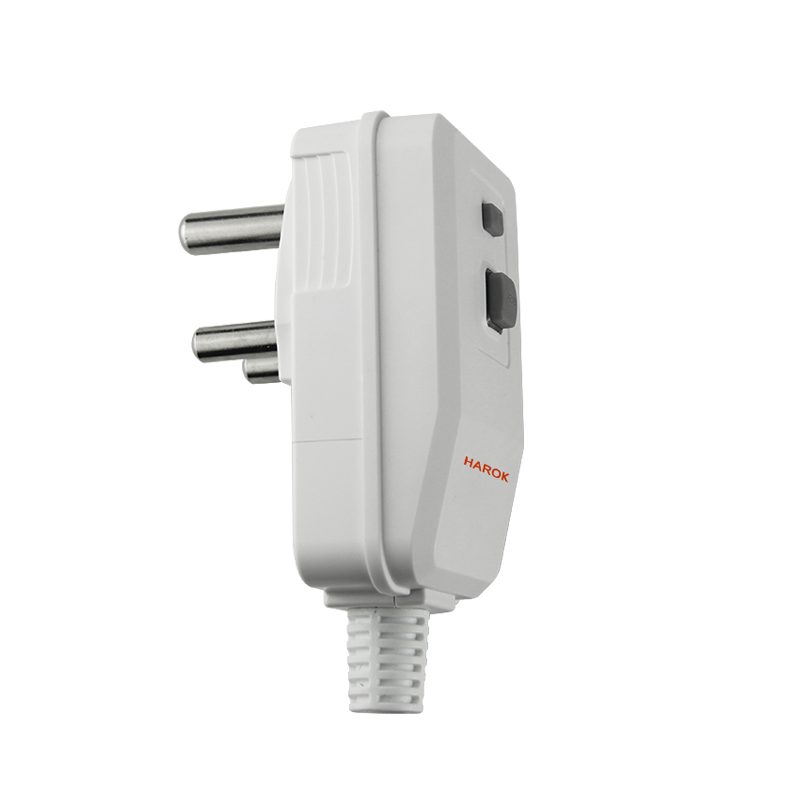

VPRCD1

General

16 A plug with in-built RCD

Trips the connected appliance in case of any detection of current leakage.

Prevents chances of any electrical shock.

Auto trip & visual indication of Power

Power indicator for on / off status

Built in TEST & RESET Buttons

Test function is for checking any abnormality in the circuit.

RESET function is for switching on the appliance after its shut down.

Range of Application

Can be used with multiple appliances–

-Incandescent lighting, electrical heating, and water heater

-Household devices: Irons, microwave, Induction cooking, washing machine, dryer, and small electro-domestic loads

-Computer and socket circuits on which power/several electronic devices can be plugged

-Machines with non-linear elements (diode, capacitors, rectifiers): Motors, manufacturing machines, and photovoltaic 1P

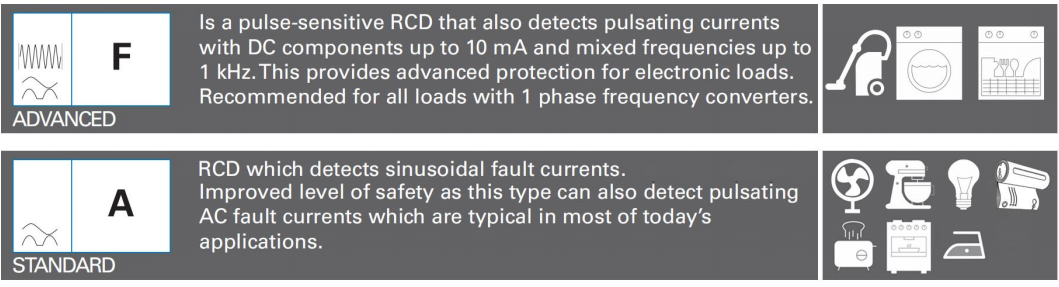

Type F

Type F: Protection at different frequencies. In a few applications, the expected fault current may contain composite residual currents, with frequencies from a few hertz up to 1000 Hz. Residual current devices able to detect such waveshapes are known as Type F RCD

For example, loads to be protected with Type F are single phase Class 1 devices containing a motor controlled by a variable speed drive like a heat pump, air conditioner or a washing machine with speed drives
