VKL11 ( TYPE A EV)

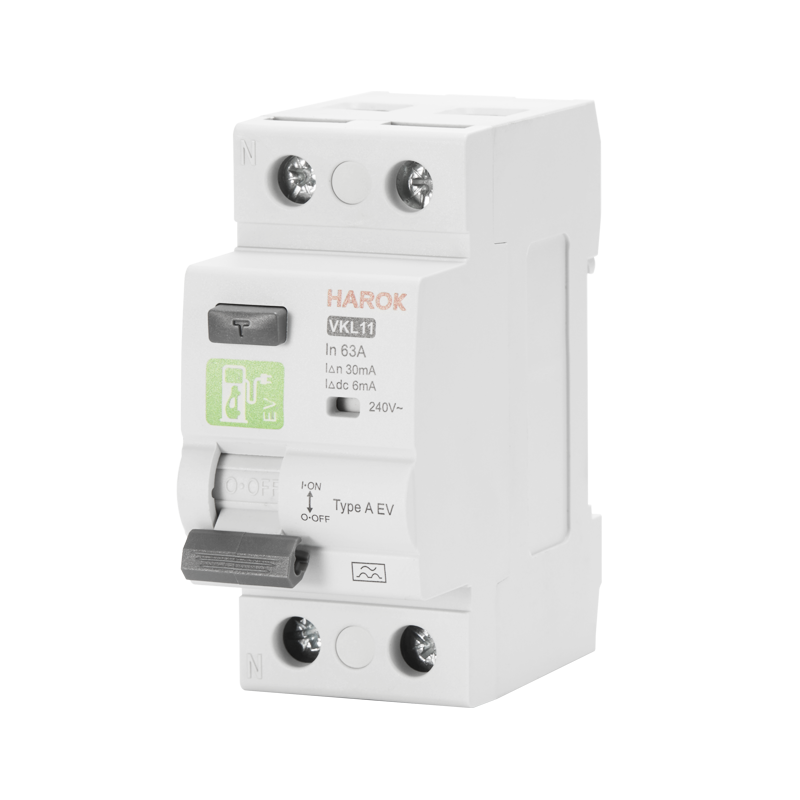

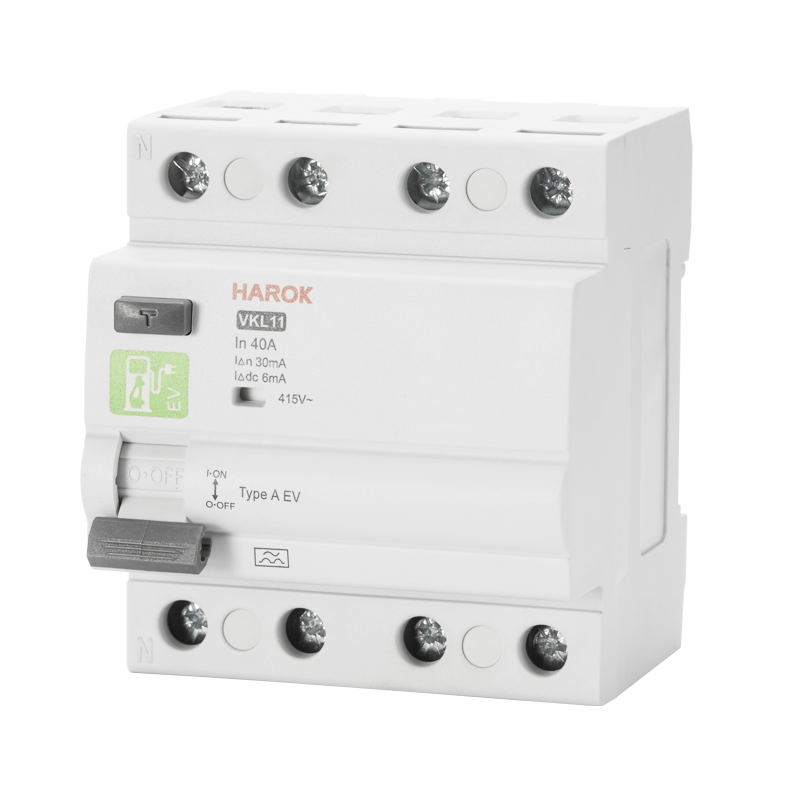

VKL11 Residual Current Operated Circuit Breaker Type A EV
Model No. ：VKL11 A EV
Poles：2P, 4P
Rated current In：16A, 25A, 32A, 40A, 63A, 80A, 100A
Rated Sensitivity I△n：10mA(2P/4P 16A-40A), 30mA, 100mA, 300mA
DC tripping threshold：6mA
Rated voltage Ue：2P: 240V 4P: 415V
Insulation voltage Ui：500V
Rated frequency：50/60 Hz
Rated residual making and breaking capacity I△m:500A (In=16A, 25A, 32A, 40A) 630A(In=63A), 800A(In=80A), 1000A(In=100A)
Short-circuit current Inc=I△c：6000A, 10000A
Product Profile
Function
Residual Current Circuit Breaker VKL11 TYPE A EV (RCCB TYPE A EV) is the Type EV RCCB which has been developed specifically for EV charging systems and can detect AC and DC residual currents in accordance with the requirements of EN61008-1 and IEC62955(RDC-PD:Residual Direct Current Protective Device )
VKL11 Type A EV RDC-PD/RCCB is designed specifically for use in Mode 3 charging applications.
Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
Smooth DC 6mA
smooth DC residual currents (switch-off at max 6 mA)
Approvals and certificates :UKCA,CE
Tripping sensitivity
30mA - 50Hz sinusoidal AC ; Pulsating DC
Smooth DC ≥ 6 mA (RDC-PD)
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).

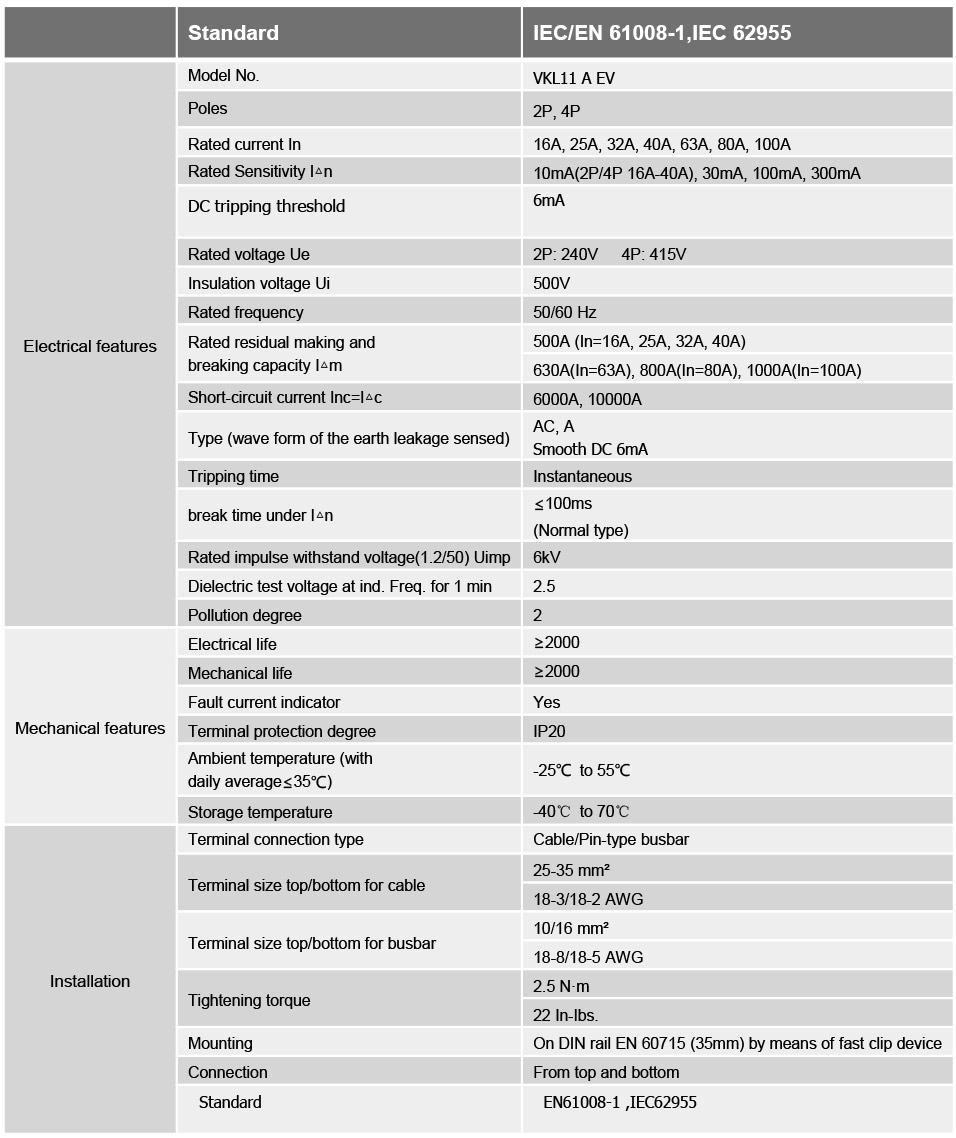

Technical Data

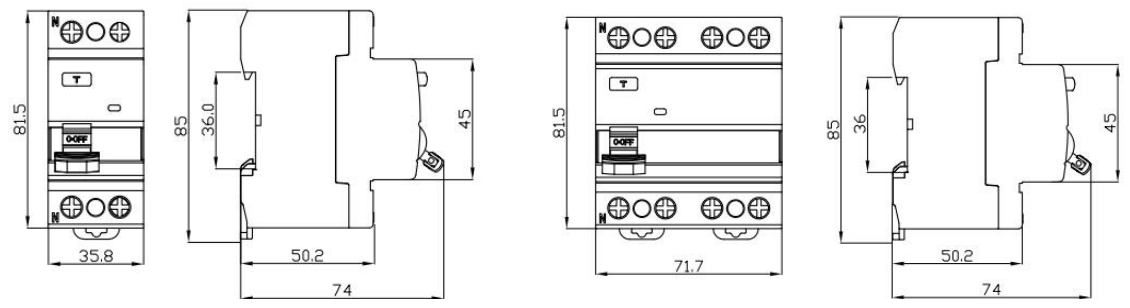

Dimensions
Product Profile
Function
Residual Current Circuit Breaker VKL11 TYPE A EV (RCCB TYPE A EV) is the Type EV RCCB which has been developed specifically for EV charging systems and can detect AC and DC residual currents in accordance with the requirements of EN61008-1 and IEC62955(RDC-PD:Residual Direct Current Protective Device )
VKL11 Type A EV RDC-PD/RCCB is designed specifically for use in Mode 3 charging applications.
Selection
Detectable wave form
AC class
Tripping is ensured for slowly increasing sinusoidal AC residual currents
A class
Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly.
Smooth DC 6mA
smooth DC residual currents (switch-off at max 6 mA)
Approvals and certificates :UKCA,CE
Tripping sensitivity
30mA - 50Hz sinusoidal AC ; Pulsating DC
Smooth DC ≥ 6 mA (RDC-PD)
Tripping time
Instantaneous
It ensures instantaneous tripping(without time-delay).
